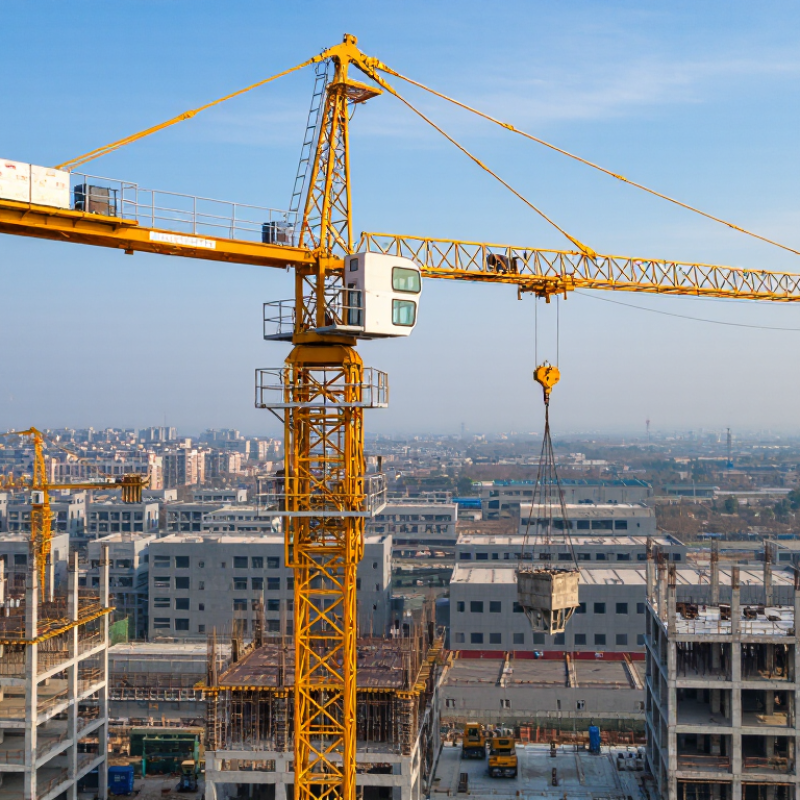

A Rc Tower Crane is a familiar sight on busy construction sites, rising above concrete frames and steel structures. Its tall mast, horizontal jib, trolley, and lifting hook work together as one coordinated system. Unlike mobile cranes, it usually stands on a fixed foundation or climbing frame. This arrangement gives it strong lifting height and a wide working radius.
The crane’s electric motors control several movements. The hoist raises or lowers materials, while the trolley moves the load along the jib. A slewing mechanism rotates the upper structure around the mast. An operator uses cabin controls, cameras, indicators, and load charts to manage these actions. A concrete bucket may travel slowly across the site, carrying a steady load above unfinished floors. Small adjustments matter.
The basic principle sounds simple. The real work is not. Wind, load weight, ground conditions, and nearby structures can change operating decisions quickly. Experienced site teams inspect components, follow the manufacturer’s instructions, and confirm safe working limits before lifting. Qualified personnel should install, operate, and maintain the crane under applicable safety requirements. This article explains the main parts of an Rc Tower Crane and follows the lifting process from control input to hook movement. It also considers common limitations, because tower cranes are powerful but not automatically safe. Some descriptions may simplify complex engineering details. That is worth acknowledging. Proper planning, regular inspection, and disciplined communication remain more dependable than confidence alone.
An RC tower crane is a tower crane operated through radio control rather than fixed cabin controls. “RC” means radio-controlled. The transmitter sends commands to hoisting, slewing, trolley travel, and braking systems. Modern systems may also display load, height, wind speed, and fault messages. Radio control is convenient at ground level. It is not automatically safer.
The mast creates vertical height through connected steel sections and anchored foundations. At the top, the jib extends horizontally and carries the trolley and hook. A counter-jib supports counterweights, balancing the lifted load. The jib’s length changes the permitted load. For example, an illustrative crane might lift 10 tonnes near the mast but only 2 tonnes at its outer radius. This is a load-chart limit, not a rough suggestion. EN 14439 requires tower-crane safety provisions, while ISO 4305 addresses crane stability and rated-load verification.
Rated load depends on radius, configuration, reeving, wind conditions, and foundation design. Operators must read the manufacturer’s chart and confirm the actual radius before lifting. OSHA’s crane rule, 29 CFR 1926.1417, requires operators to follow rated-capacity information. The International Labour Organization reports 2.78 million work-related deaths annually, highlighting why lifting controls deserve disciplined attention. Radio signals can be interrupted. Visibility can be poor. Human judgment still matters. I have seen simple assumptions cause larger risks than complex equipment faults. Safety inspections, competent supervision, and documented pre-use checks remain essential.
“RC” means radio-controlled. An operator uses a wireless transmitter instead of fixed cabin controls.
It can slew, travel the trolley, and hoist loads. These movements position materials across the worksite.
Connected steel mast sections rise from an anchored foundation. The mast supports the upper structure, jib, and counter-jib.
A crane can usually lift more near the mast. At the jib tip, capacity may fall sharply.
Read the crane’s load chart and confirm the actual radius. Never treat the chart limit as a rough suggestion.
The trolley moves the hook inward or outward along the jib. A longer reach often means a smaller permitted load.
Wind, foundation conditions, reeving, load weight, and radius all matter. A swinging load can drift beside scaffolding.
No. Signals can weaken, visibility can fail, and judgment can still be wrong. Remote control improves access, not every risk.
Inspect controls, wire rope, hook, brakes, limit devices, signals, wind conditions, and the foundation. Small omissions can become serious.
Smooth joystick inputs reduce sudden slewing, trolley overshoot, and load swing. I sometimes underestimate small movements; that deserves review.
An Rc Tower Crane is a large lifting machine operated by radio control, combining a vertical mast, horizontal jib, trolley, hoist, hook, and rated-load system. Its main movements include 360-degree slewing around the mast, trolley travel along the jib to adjust the working radius, and hoisting to raise or lower materials. The operator’s remote command is processed by control equipment, which activates the appropriate motor while brakes regulate acceleration, positioning, and stopping.
A complete lift cycle begins with selecting a safe load position, checking the load chart, and sending controlled movement commands. Typical capacities may range from 5 to 20 tonnes, but the allowable load decreases as the working radius increases. Safe operation requires attention to rated loads, wind limits, ground and structural conditions, and clear communication. Compliance with EN 14439 principles, together with overload protection, limit switches, and anti-collision systems, helps reduce operational risks and supports controlled lifting on busy construction sites.
